Product Family
Warranty:
Vertiv™ Geist™ Monitored rPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.
Vertiv™ PowerIT Monitored Rack PDU
Vertiv™ PowerIT Monitored rack PDUs (rPDU) provide a comprehensive view of power usage, both at the rack and via remote access while continuing to provide reliable power distribution to critical IT equipment. Monitored rPDUs are available in a variety of electrical and receptacle configurations. Every unit is 100% tested for reliability and functionality.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Product Family
Vertiv™ PowerIT Monitored Rack PDU
Vertiv™ PowerIT Monitored rack PDUs (rPDU) provide a comprehensive view of power usage, both at the rack and via remote access while continuing to provide reliable power distribution to critical IT equipment. Monitored rPDUs are available in a variety of electrical and receptacle configurations. Every unit is 100% tested for reliability and functionality.
Warranty: Vertiv™ Geist™ Monitored rPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.Tools & Selectors
Select, compare, or configure PDUs
Use the rPDU Finder
Find the PDU you require based on a variety of configurations
Configure your own rPDU
Engineered solutions delivered in record time
Specifications
|
Vertiv PowerIT HD rPDU VP4U60A2
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 43.4kW | 240V/415V WYE | 240V (L-N) | 2 | 2.6 | 19 | |||
| See more product information | ||||||||
|

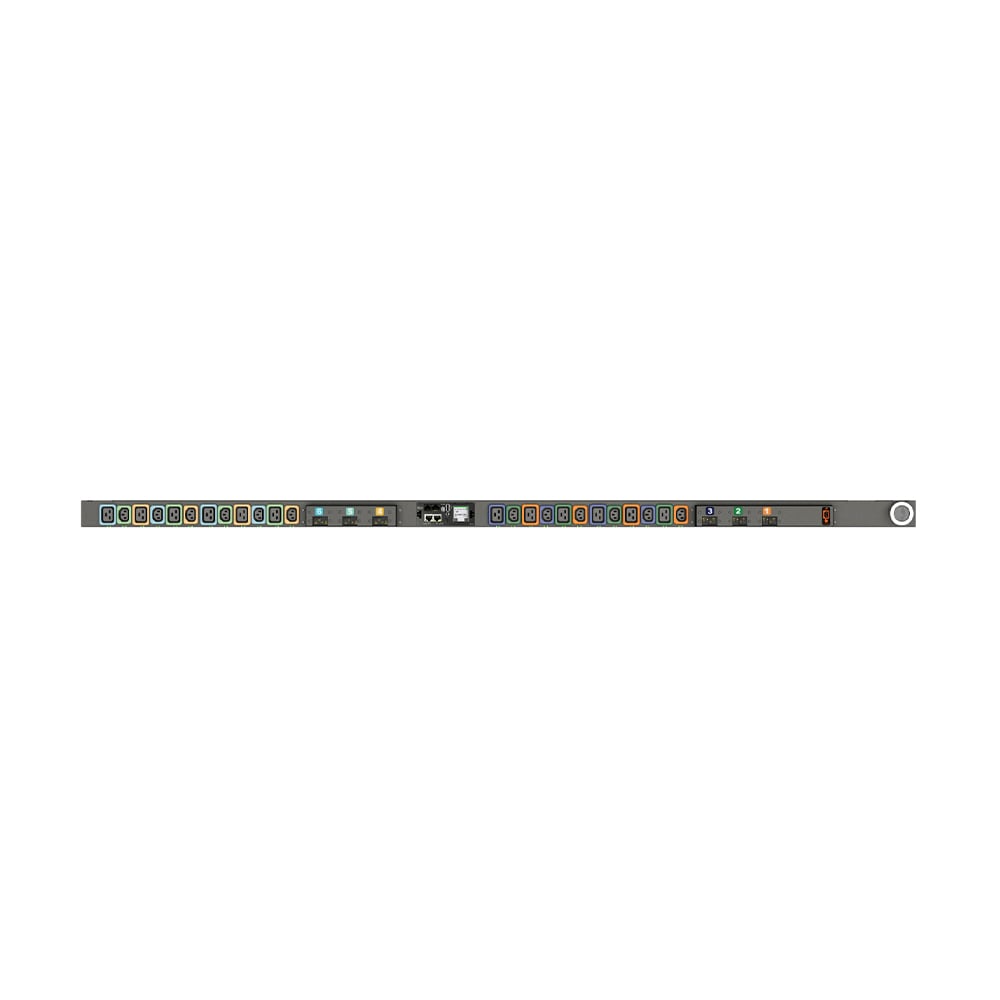

VP6N60A1
|
||||||||
| 60A | 208V DELTA | 208V | (12) U-Lock C13 / (12) U-Lock C19 | Rack | ||||
| See more product information | ||||||||
|

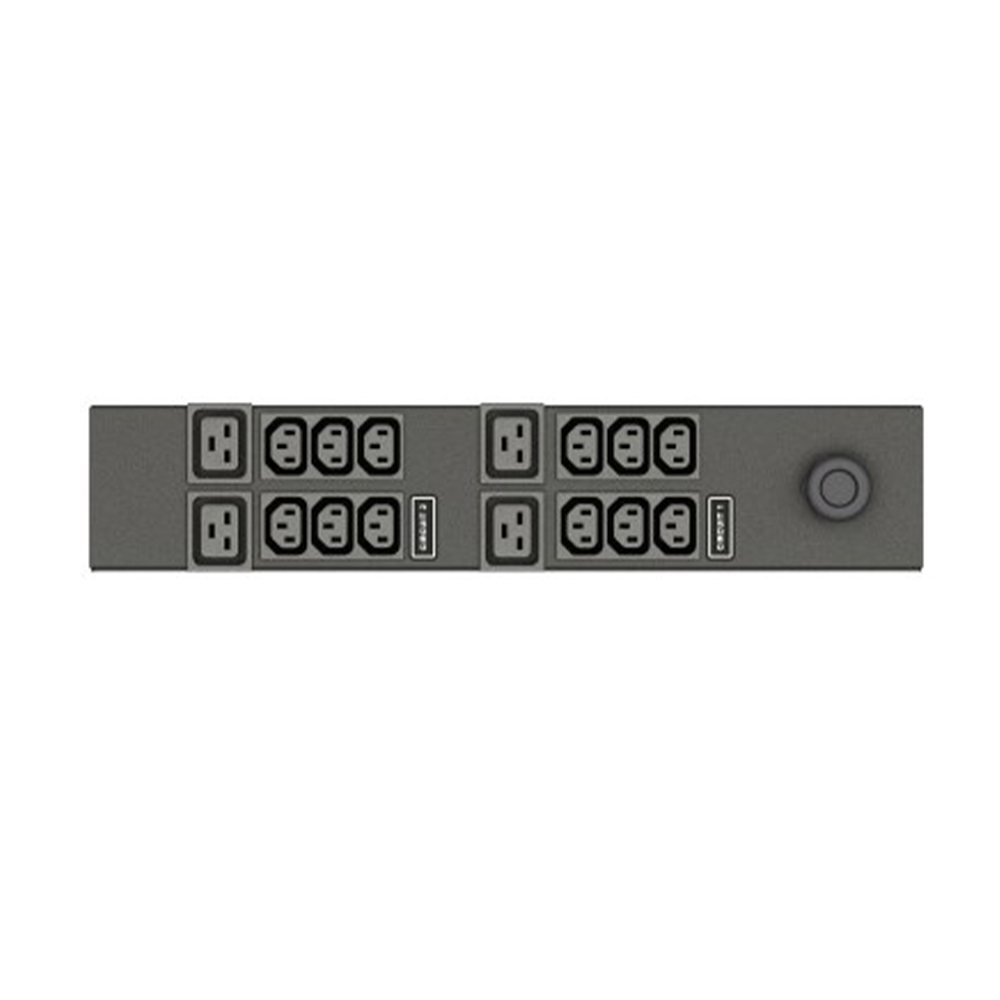

VP4N32A0
|
||||||||
| 30A | 208V | 208V | (12) C13 / (4) C19 | Rack | ||||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP6U60A0
|
||||||||
| 14.4kW | 240V | 240V (L-N) | 3.5 | 2.6 | 19 | |||
| See more product information | ||||||||
|

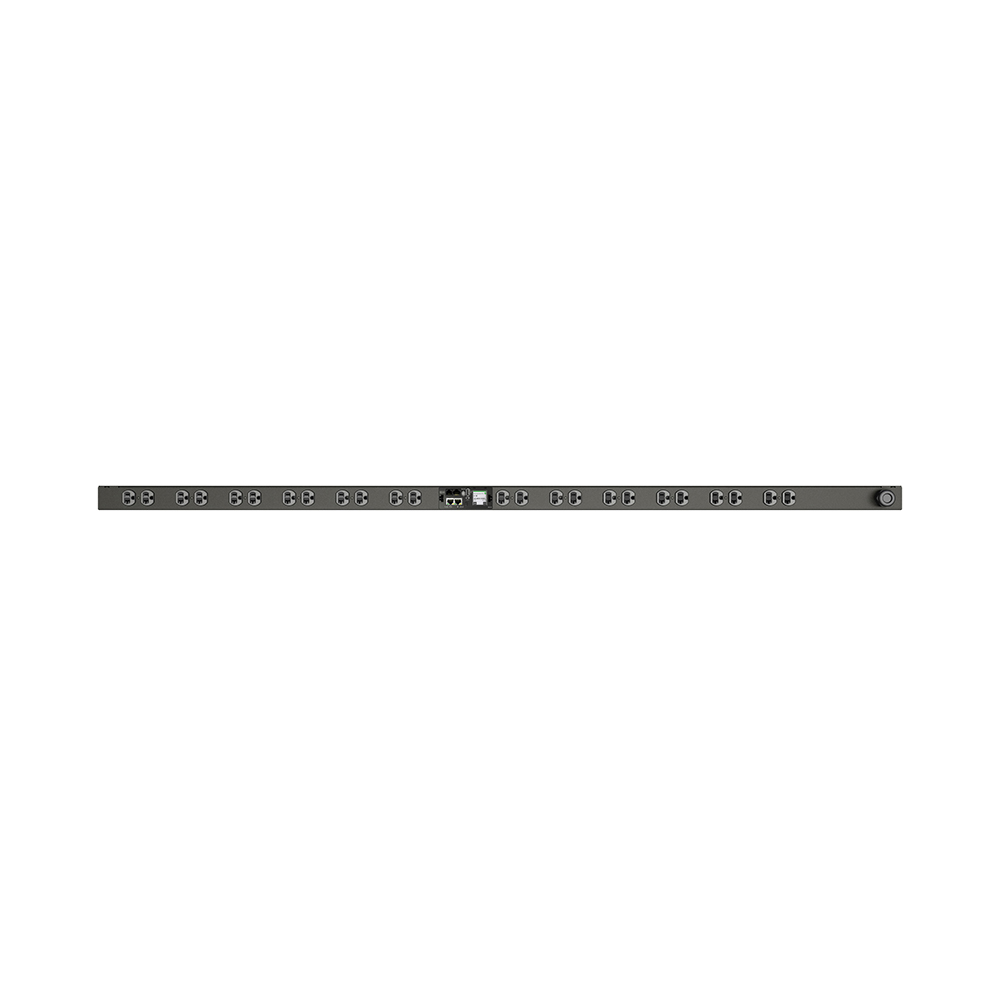

VP4N20A7
|
||||||||
| 20A | 120V | 120V | (24) 5-20R | Rack | ||||
| See more product information | ||||||||
|

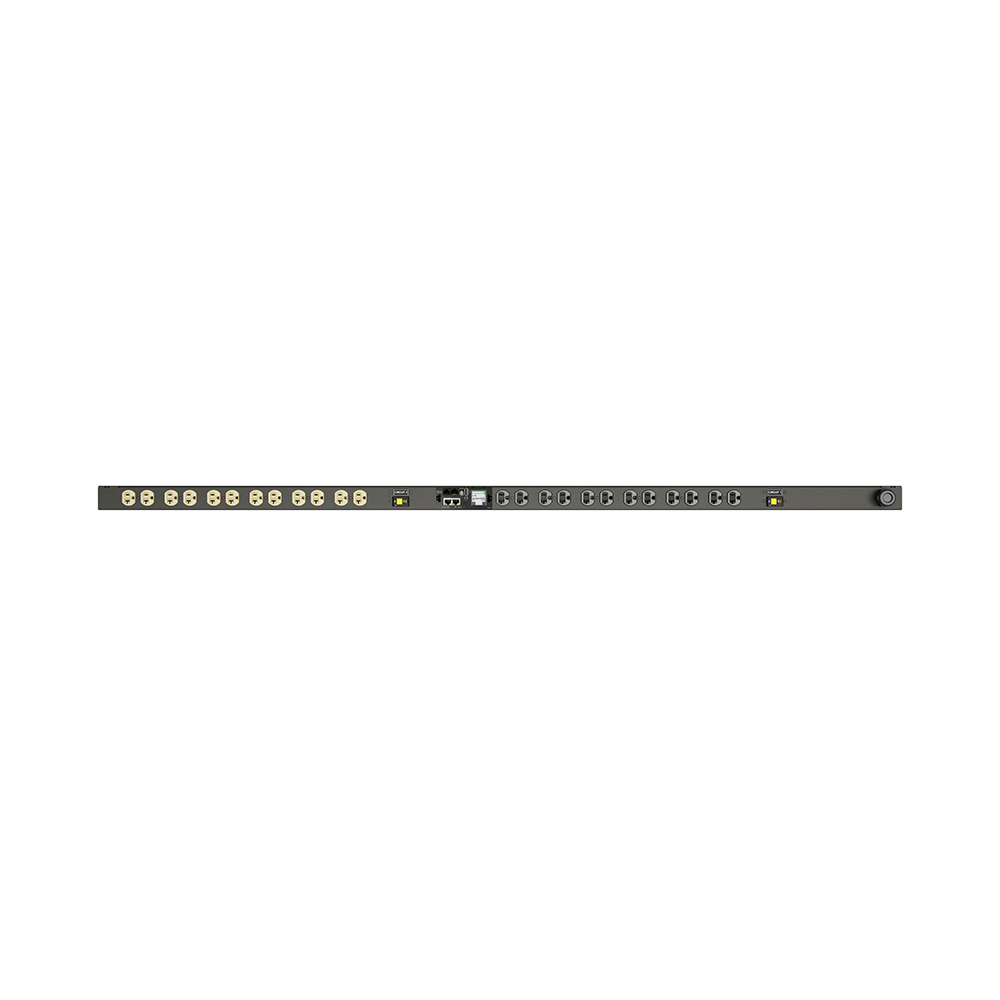

VP4N30AP
|
||||||||
| 30A | 120V | 120V | (24) 5-20R | Rack | ||||
| See more product information | ||||||||
|

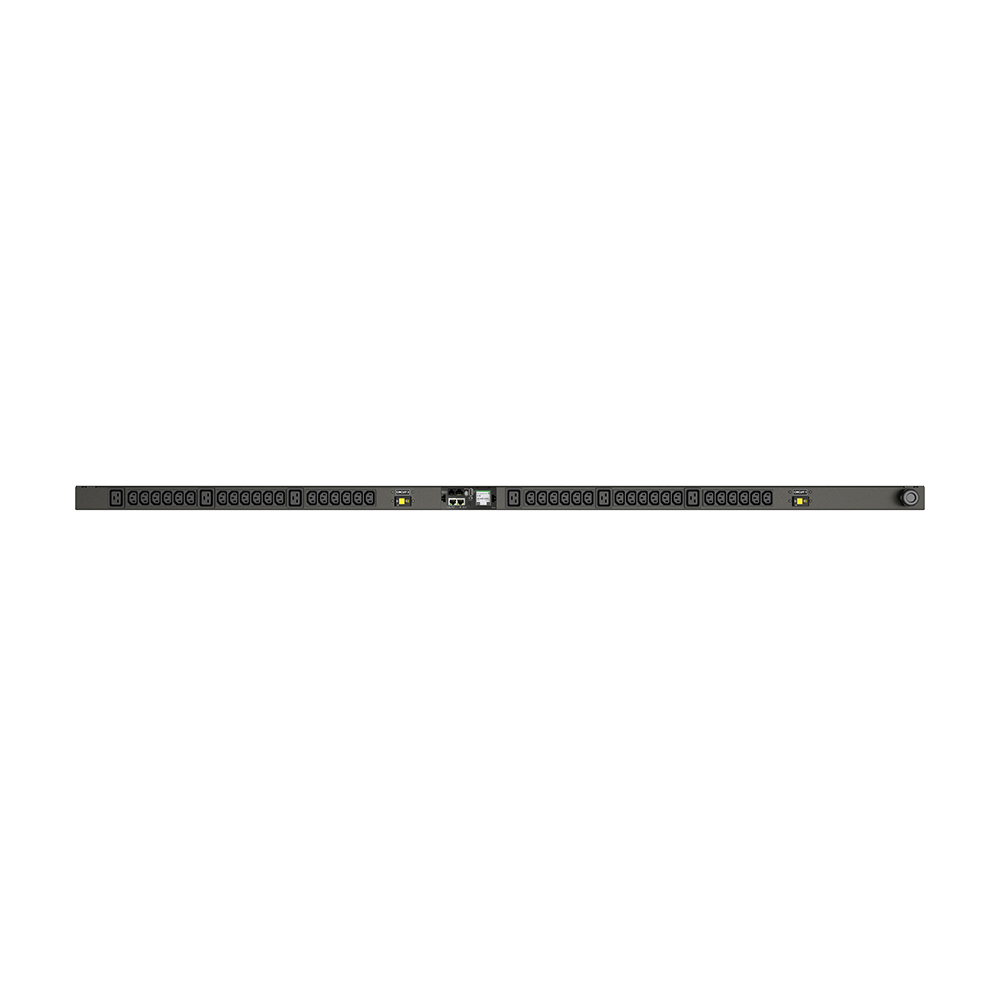

VP4N30AQ
|
||||||||
| 30A | 208V | 208V | (36) C13 / (6) C19 | Rack | ||||
| See more product information | ||||||||
|

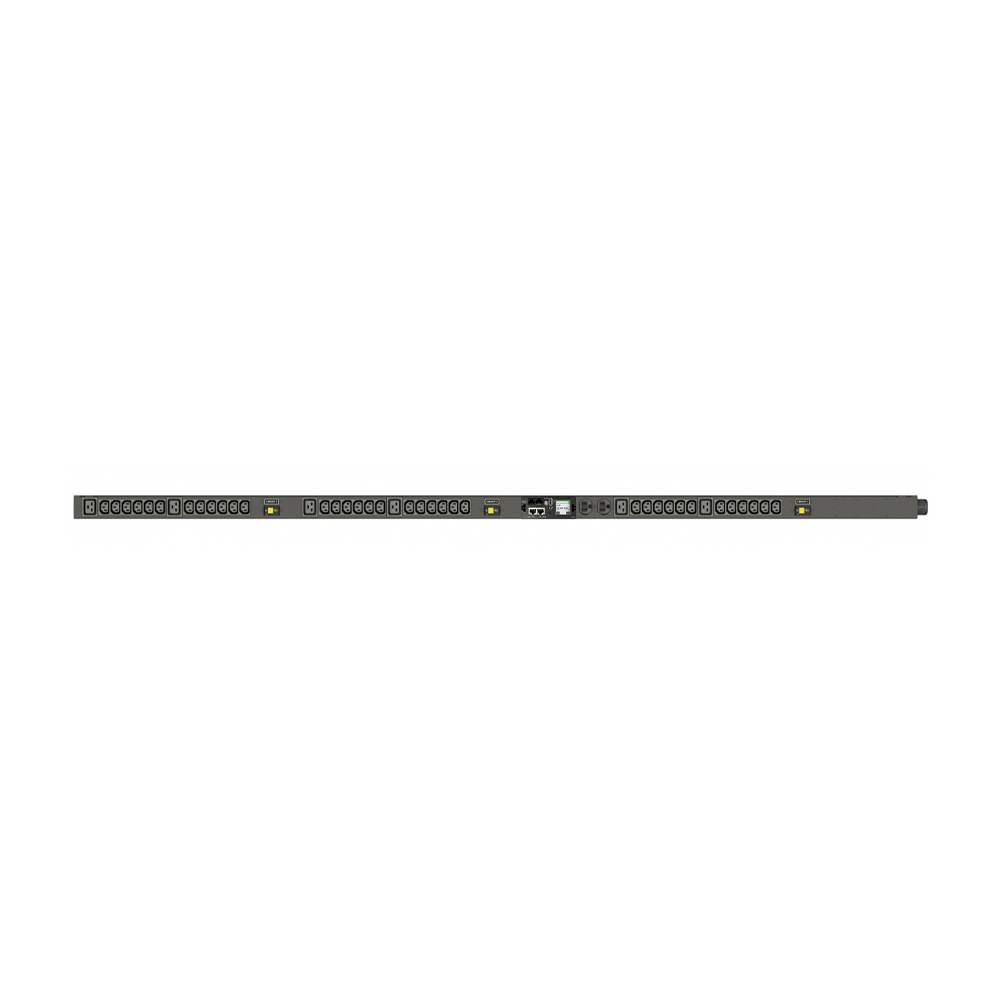

VP4N30AR
|
||||||||
| 30A | 120/208V WYE | 120V & 208V | (36) C13 / (6) C19 / (2) 5-20R | Rack | ||||
| See more product information | ||||||||
|
VP4N60AF
|
||||||||
| 60A | 208V DELTA | 208V | (12) C13 / (12) C19 | Rack | ||||
| See more product information | ||||||||
|

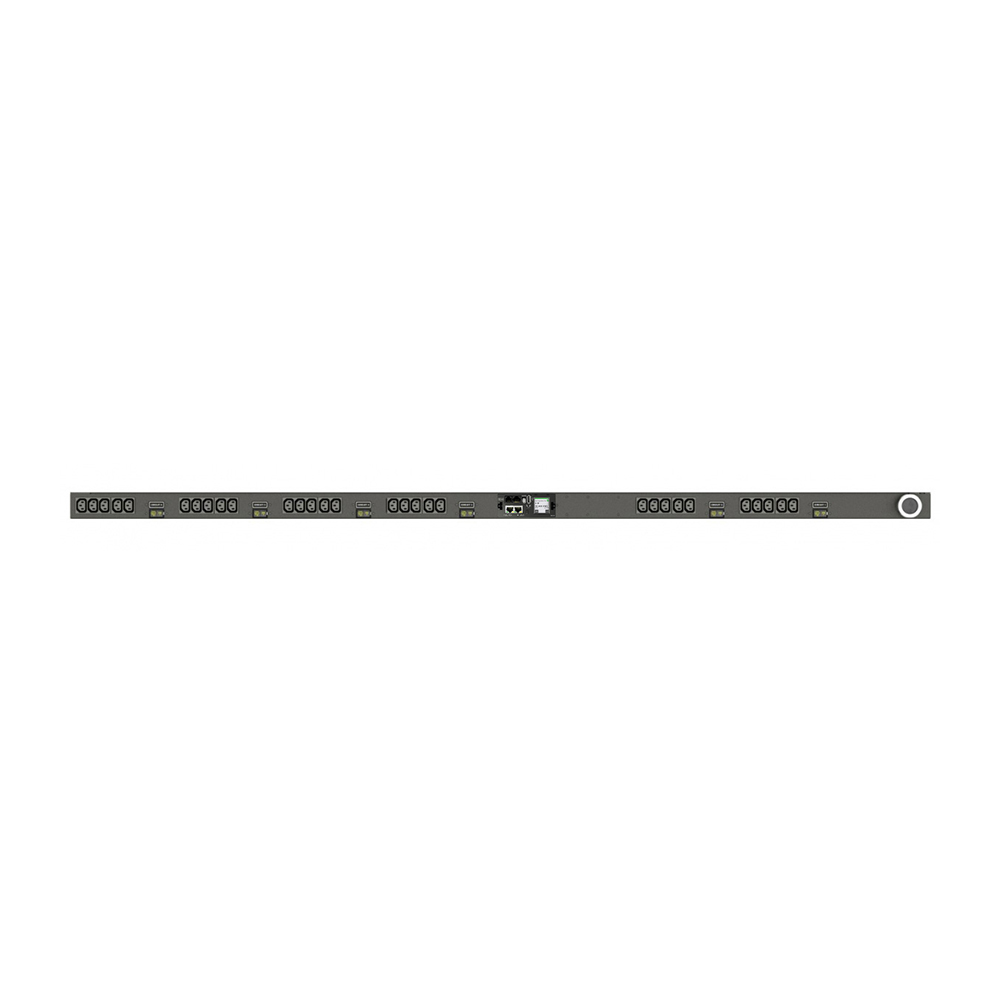

VP4N60AG
|
||||||||
| 60A | 208V DELTA | 208V DELTA | (30) C13 | Rack | ||||
| See more product information | ||||||||
|
VP4N40A3
|
||||||||
| 35A | 208V DELTA | 208V DELTA | (36) C13 / (6) C19 | Rack | ||||
| See more product information | ||||||||
|

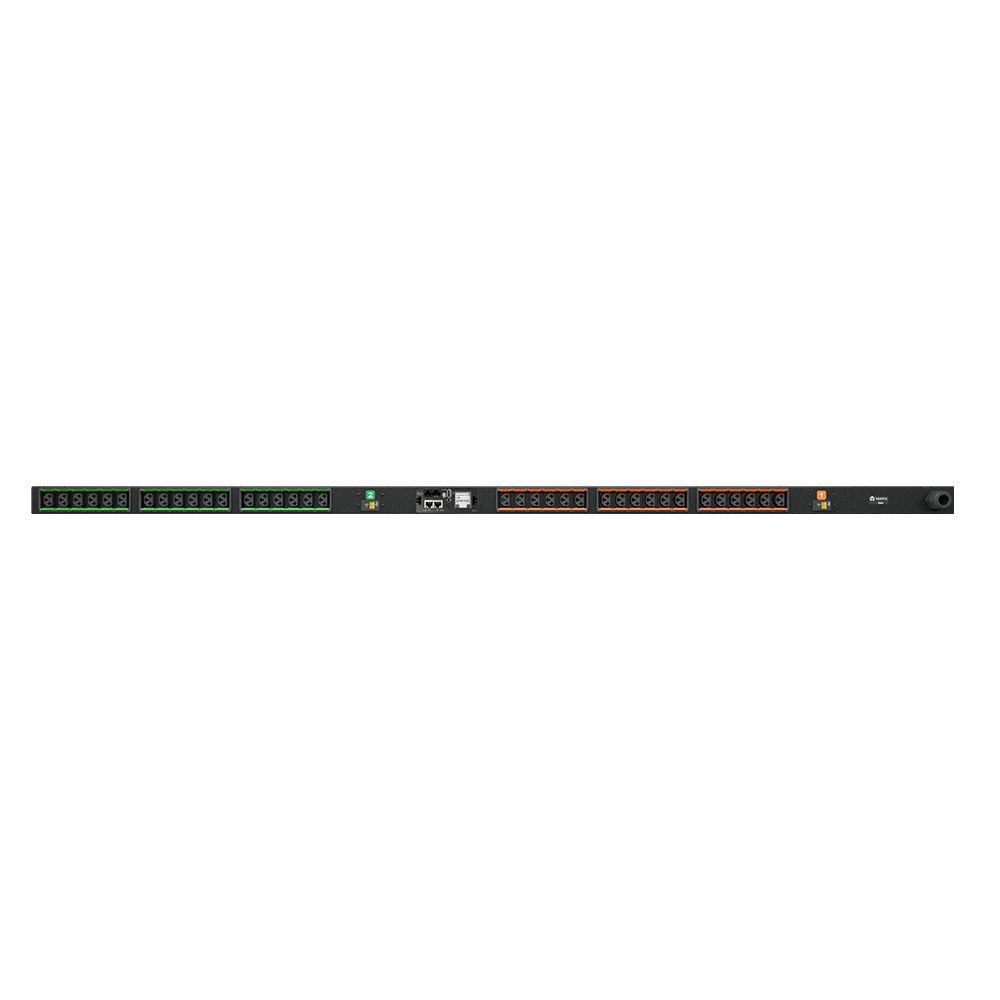

VP4N30AM
|
||||||||
| 30A | 208V | 208V | (36) Combination Outlet C13 / C19 | Rack | 66.25 in | 2 in | 2 in | 16 lb |
| See more product information | ||||||||
|

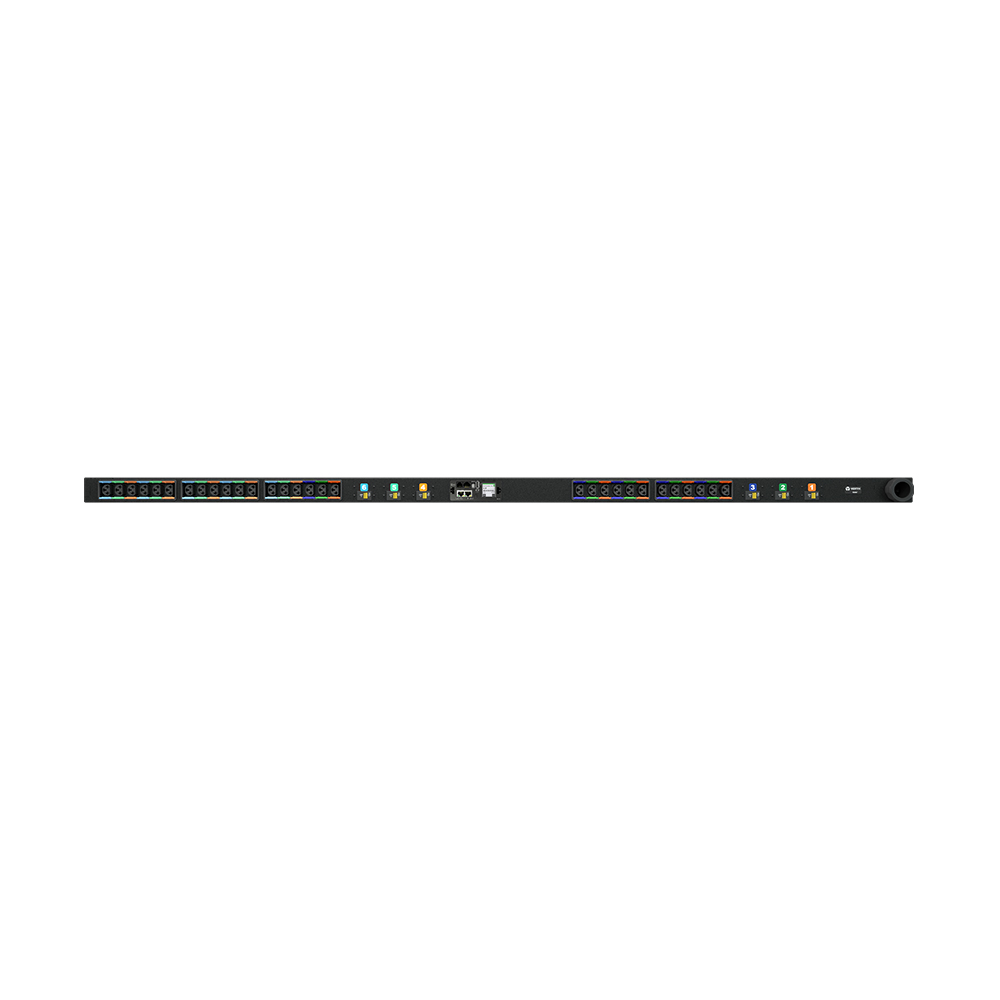

VP4N60AE
|
||||||||
| 60A | 208V Delta | 208V Delta | (30) Combination Outlet C13 / C19 | Rack | 70 in | 2.10 in | 3 in | 32 lb |
| See more product information | ||||||||
|

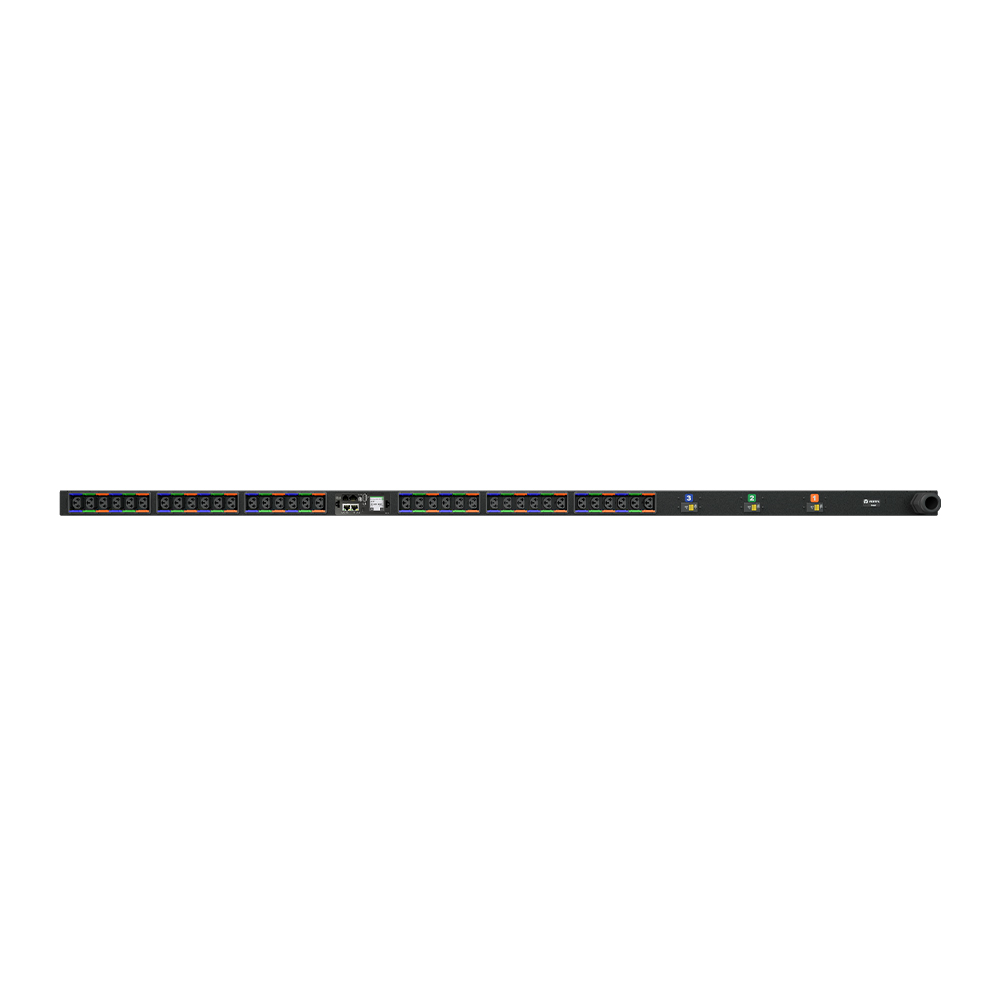

VP4N30AN
|
||||||||
| 30A | 120/208V WYE | 208V | (36) Combination Outlet C13 / C19 | Rack | 70 in | 2 in | 2 in | 17 lb |
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP6NA0A0
|
||||||||
| 28.8kW | 1~ 240V/3~ Delta 208V | 208V | 3.8 | 3 | ||||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP4NA0A2
|
||||||||
| 28.8kW | 1~ 240V/3~ Delta 208V | 208V | 3.8 | 3 | 19 | |||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP6U60A2
|
||||||||
| 43.4kW | 240V/415V WYE | 240V (L-N) | 3.8 | 3 | 22 | |||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP6U60A1
|
||||||||
| 43.4kW | 240V/415V WYE | 240V (L-N) | 3.8 | 3 | 25 | |||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP4U62A1
|
||||||||
| 43.4kW | 240V/415V WYE | 240V (L-N) | 3.48 | 17.12 | 12 | 19 | ||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP6U62A2
|
||||||||
| 43.4kW | 240V/415V WYE | 240V (L-N) | 3.48 | 17.12 | 12 | 22 | ||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP6U60A3
|
||||||||
| 43.4kW | 240V/415V WYE | 240V (L-N) | 2 | 2.6 | 22 | |||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP4NA0A0
|
||||||||
| 28.8kW | 1~ 240V/3~ Delta 208V | 208V | 3.8 | 3 | 19 | |||
| See more product information | ||||||||
|
Vertiv Geist Monitored rPDU VP6N6013
|
||||||||
| 34.5kW | 240V/415V WYE | 240V (L-N) | 66.25 | 3.8 | 3 | 22 | ||
| See more product information | ||||||||
|
Vertiv Geist Monitored rPDU VP4N6019
|
||||||||
| 34.5kW | 240V/415V WYE | 240V (L-N) | 66.25 | 3.8 | 3 | 19 | ||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP4U60A1
|
||||||||
| 14.4kW | 240V | 240V (L-N) | 2 | 2.6 | 19 | |||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP6UA0A0
|
||||||||
| 57.6kW | 240V/415V WYE | 240V (L-N) | 3.8 | 3 | 22 | |||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP4U60A0
|
||||||||
| 14.4kW | 240V | 240V (L-N) | 2.6 | 19 | ||||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP4UA0A1
|
||||||||
| 57.6kW | 240V/415V WYE | 240V (L-N) | 3.8 | 3 | 19 | |||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP6U62A0
|
||||||||
| 14.4kW | 240V | 240V (L-N) | 3.48 | 17.12 | 12 | 20 | ||
| See more product information | ||||||||
|
Vertiv PowerIT HD rPDU VP4U62A0
|
||||||||
| 14.4kW | 240V | 240V (L-N) | 3.48 | 17.12 | 12 | 19 | ||
| See more product information |
Benefits
Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
Environmental monitoring capabilities ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
Upgrade your hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs without having to replace entire power strips.
U-Lock receptacles available on select units to secure power cords and avoid accidental disconnections.
Simplify circuit and phase balancing with color-coded receptacles available on select units.
Monitor power consumption at the outlet-level on select units for a detailed view of power distributed to specific equipment with the outlet level option.
Every unit is 100% tested for reliability and functionality to ensure units function as designed.
North American units are UL listed in accordance with common data center and insurance provider requirements.
Standard three-year warranty, upgraded to five years with product registration.
Save time and money by pre-integrating rPDUs with the VR Rack. Contact your local sales representative to get started.
Features

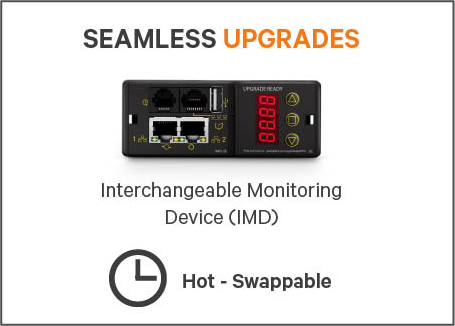

Hot-Swappable and upgradeable monitoring device.
Local and remote power monitoring with accuracy of +/- 1% (ANSI & IEC Standards).
Environmental monitoring with the addition of optional sensors.
High Temperature Grade 60°C for high temperature environments.
Color-coded U-Lock receptacles by circuit for instant identification on select units.
Available in vertical and horizontal rackmount form factors.
Flexibility to meet a broad range of requirements, with a variety of electrical and receptacle configurations available.
Simple and quick installation in all standard racks or cabinets with included mounting brackets.
TAA Compliant
The LCD touchscreen of the IMD-5M auto-orients for both vertical and horizontal units.
Enhanced with Secure Boot, the Hardware key and Firmware key must match to boot up.
When connected with another rPDU via a redundant power cable, the IMD-5M remains powered when the rPDU loses power.
Manuals
Brochures and Data Sheets
- Vertiv Rack PDU Brochure SL-20881
- Vertiv™ Geist™ Environmental Monitoring Product Overview Brochure SL-70429
- Vertiv™ Geist™ rPDU Product Line Comparison Data Sheet SL-70599.pdf
- Vertiv™ Geist™ Upgradeable rPDU IMD Feature Comparison SL-70413
- Network Design & Switch Configuration for Vertiv™ Geist™ Upgradeable rPDU - Application Brief.pdf
- Providing Network Connectivity to Intelligent rPDUs Without Requiring Expensive Switch Ports for Each.pdf
Software
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Geist Support - Americas (Rack PDU and Watchdog)
Email Contact
+1 888 630 4445
1777 Yolande Avenue
Lincoln Nebraska
USA
Product areas of focus:
Power Distribution, Monitoring
Vertiv (Customer Service for DC Power Systems & Outdoor Enclosures)
Email Contact
+1 800 800 1280
USA
Product areas of focus:
DC Power Systems, Power Distribution, Outdoor Enclosures
Vertiv (Liebert Services)
Email Contact
+1 800 543 2378
610 Executive Campus Drive
Westerville Ohio 43082
USA
Product areas of focus:
Uninterruptible Power Supplies (UPS), Power Distribution, Thermal Management, Integrated Solutions, Racks and Containment
Change
Frequently Asked Questions
- Q
- What type of readings does the Monitored Upgradeable rPDU provide?
- A
- The Monitored Upgradeable rPDU provides Input Power Monitoring (A, V, VA, kWh, PF) and Circuit Monitoring (A) where applicable determined by the base rPDU model.
- Q
- Do the Monitored rPDUs monitor power usage at the input and circuit level?
- A
- Yes, the monitored rPDUs monitor and display the input/circuit power readings for the rPDU where applicable determined by the base rPDU model.
- Q
- What is the benefit to monitoring at the outlet level?
- A
- Monitoring at the outlet level allows you to pinpoint system-critical failures and take preventative measures. For example, a gradual rise in a server’s current draw over time might indicate a failing power supply. Outlet level monitoring can also track where power is being used for departmentalized power billing in large companies. Outlet Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements.
- Q
- What is the accuracy rating of the power readings at the outlet?
- A
- Outlet Power Measurements Compliant with ANSI C12.1 and IEC 62053-21 at 1% Accuracy Class Requirements.
- Q
- Can I upgrade the Unit Level Monitoring Upgradeable unit without removing power from the unit?
- A
- Yes, the rPDU power can remain on during the removal and/or installation of the Interchangeable Monitoring Device.
