Product Model

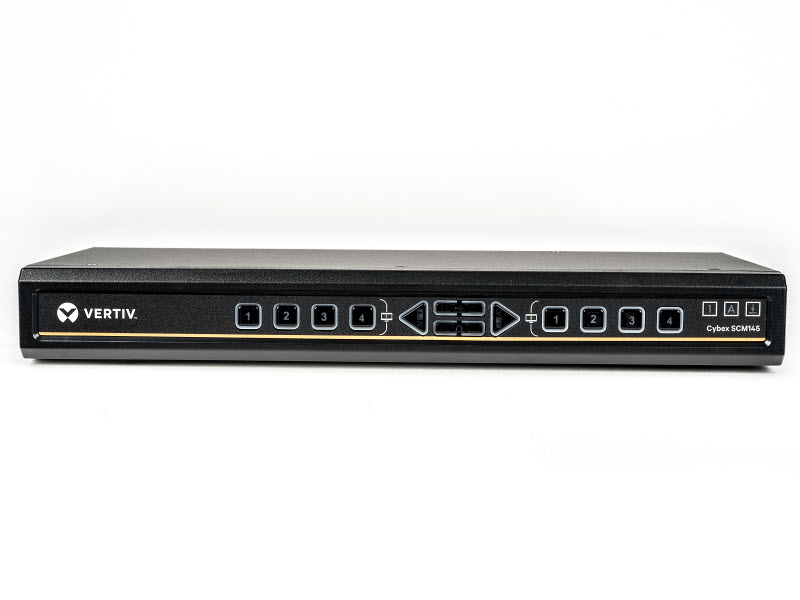

Cybex™ SCM145 Secure Desktop Matrix
The Vertiv™ Cybex™ Secure Desktop Matrix allows users to securely interact with multiple computers and observe two active computers simultaneously. Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0, the Cybex Secure Desktop Matrix is ideal for environments where monitoring and managing of multiple computers, covering various degrees of secure data is required.
Quick Access
Specifications
Technical Specifications
Cybex™ SCM145 Secure Desktop Matrix
- Product Overview

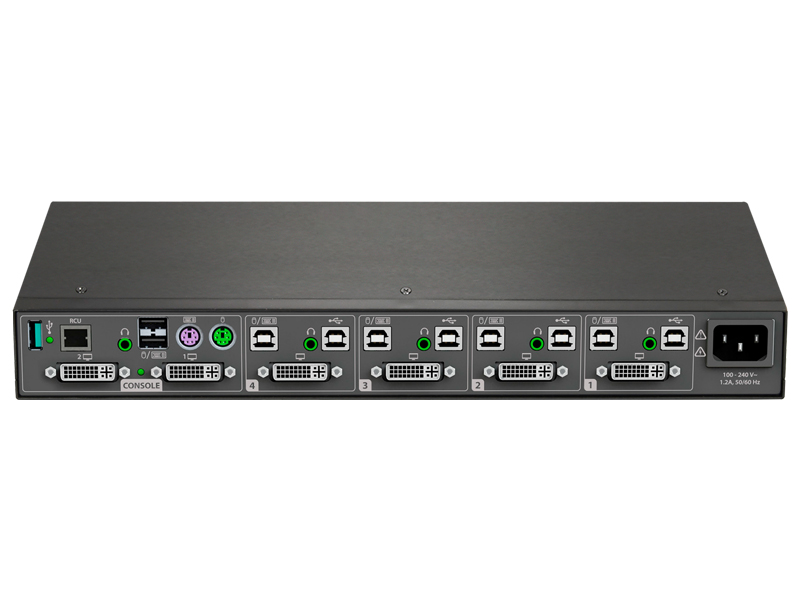

- Input Ports
- (4) DVI-I dual-link
- Output Ports
- (2) DVI-I dual-link
- Video Resolution
- DVI-I dual-link - 2560 x 1600 @ 60Hz
- Power Description
- Power Supply(s)
- Internal
- Input Power (Maximum)
- 35W (100V-240V AC)
- Operational Conditions
- Operating Temperature
- 32° to 104° F (0° to 40° C)
- Humidity
- 0-80% RH, non-condensing
- Storage Temperature
- -4° to 140° F (-20° to 60° C)
- Physical Characteristics
- Weight
- 3 lbs
- Weight
- 1.5 kgs
- Height
- 1.7 in
- Height
- 42 mm
- Width
- 13.7 in
- Width
- 342 mm
- Depth
- 5 in
- Depth
- 125 mm
- Miscellaneous
- Agency Approvals
- CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
Brochures and Data Sheets
Software
Warranties
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Cybex™ SCM145 Secure Desktop Matrix
Warranty : 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available
Benefits
Independently switched display connections - situational awareness of any two connected systems
Hardware-based peripheral isolation loads all firmware on ROM with no keyboard buffering or memory
Dedicated Peripheral Port permits a secure connection to external USB devices, including CAC smart card readers, fingerprint readers, and face recognition devices
Features
Certified to NIAP Common Criteria Protection Profile for Peripheral Sharing Switch, version 3.0
Use for two monitors, or pair with Vertiv™ extension technology to send to a central display
Always-on active anti-tampering system
Unidirectional Optical Data Diodes assure USB peripheral isolation enabling data flow from devices to host only
